Zebra RFID Printer UHF On Metal Tags Assets Management PassiveTags

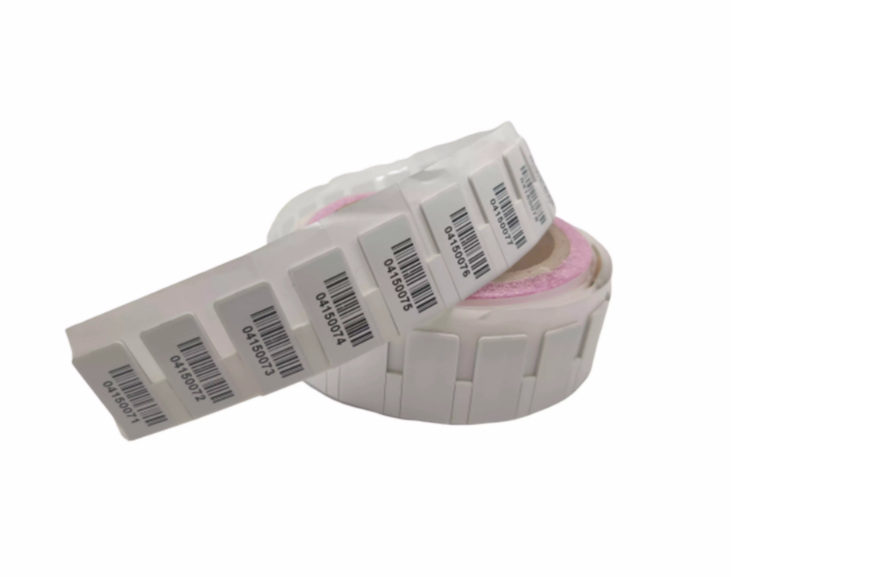

UHF Flexible RFID On Metal Tag
Printable UHF on metal RFID tags are flexible and can be easily stuck on metallic assets, especially to uneven surfaces such as steel boiler, metal container, steel pipe, etc.
It performs well on metal and is printable with logo, numbers, text by RFID printers. Our selection of printable RFID tags on metal is sure to provide you with the solution you need for your RFID application.
Our Rfid tag on metal are encoding and printable
Functional Specifications:
RFID Protocol: EPC Class1 Gen2, ISO18000-6C
Frequency: (US) 902-928MHZ, (EU)865-868MHZ
IC type: Impinj Monza R6-P
Memory: EPC128bits , User 64bits, TID96bits
Write Cycles: 100,000 Times
Functionality: Read/write
Data Retention: 50 Years
Applicable Surface: Metal Surfaces
Read Range :(Fix Reader) 1.5m,On metal tags
Read Range :(Handheld Reader)
Warranty: 1 Year
Physical Specification: (on metal Rfid tag)
Size: 45.0x8.0mm
Thickness: 1.0mm
Material: Foam
Colour: White (Customizable color printing)
Weight: 0.9g
Environmenal Specification:
IP Rating: IP57
Temperature: -20 ~ 85°C
Certifications: Reach Approved, RoHS Approved, CE Approved
| Physical Features: |
| Model | | | RFID On Metal Tag |
| Material | PET | Dimensions | 95*22*1.25mm |
| Working Temp | -20～+75℃ | Survival Temp | -40℃～+100℃ |
| RFID Features: |
| RFID Standard | EPC C1G2 (ISO18000-6C) |
| Chip Type | Impinj Monza R6-P |
| User Memory | 32(64)bit |
| EPC Memory | 128(96) bits |
| Max Read Range | 865-868MHz | 8 meters |
| 902-928MHz | 8 meters |
| Other Features: |
| Data Storage | > 10 years |
| Re-write | 100,000 times |
| Installation | Adhesive |
| Customization | Company logo,Barcode,Numbers printing,Encoding,etc |
| UHF Flexible Metal Tags Application | - Warehouse shelf
- IT asset tracking
- Metallic container tracking
- Equipment&device tracking
- Automotive components tracking, etc.
|
Product Tags:
|
|
UHF Flexible RFID On Metal Tag Printable IMPINJ MONZA R6 / R6-P Chip Images
|
